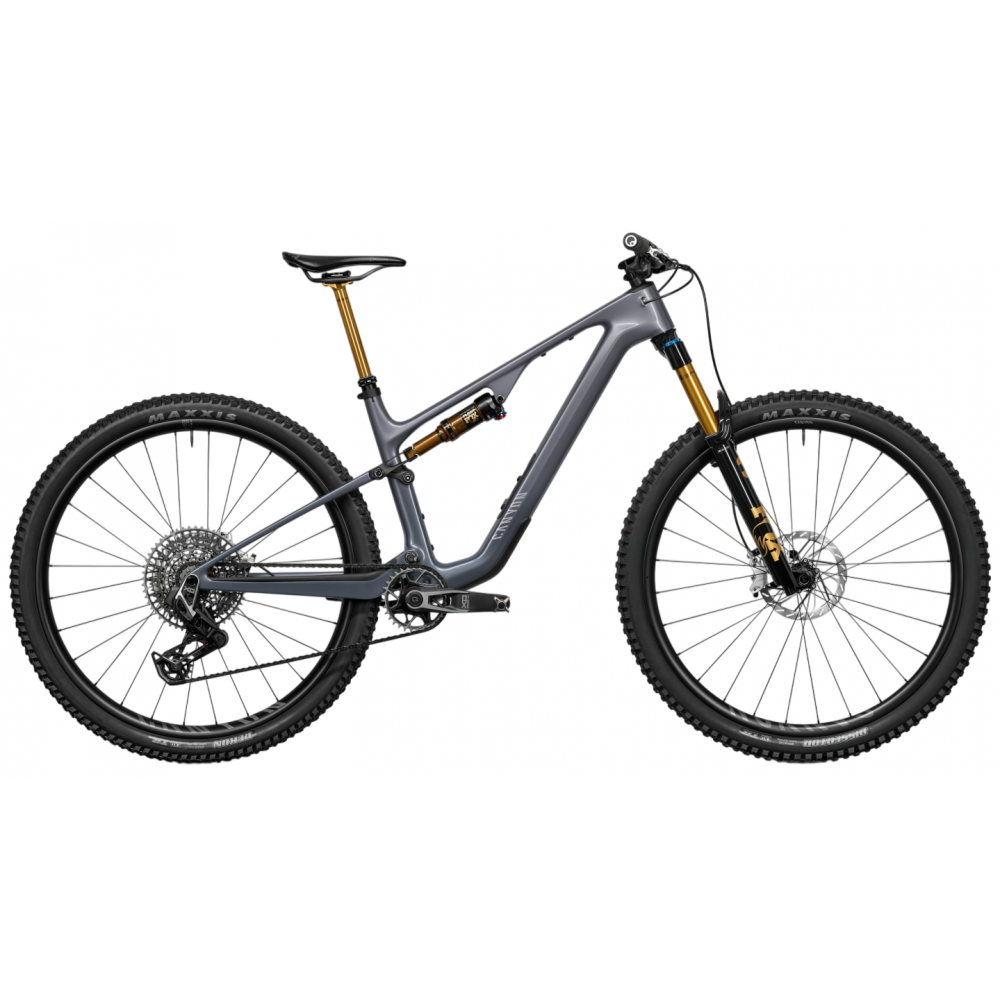

2027 Canyon Lux Trail CF 9 SRAM X0 Electronic Full Suspension Trail Mountain Bike
Product Description
Canyon Lux Trail CF 9 SRAM X0 Electronic Full Suspension Trail Mountain Bike
The Canyon Lux Trail CF 9 is the lightest and most comprehensively equipped model in the Lux Trail range, weighing just 12.1 kg. Designed for riders who want a fast, lightweight, and highly capable trail bike, it combines an ultralight carbon frame with progressive geometry, premium FOX Factory suspension, an electronic SRAM X0 drivetrain, a power meter, and lightweight carbon wheels.
Built from the award-winning Neuron CF and second-generation Lux Trail concepts, the Lux Trail combines all-round trail capability with impressive speed and efficiency. It is designed to climb quickly and efficiently while providing confidence and control when descending demanding terrain.
Key Features
- Lightest and best-equipped Lux Trail model at approximately 12.1 kg
- Ultralight carbon frame weighing approximately 1,850 g
- Spacious and watertight internal frame storage
- Progressive geometry designed for speed, stability, and control
- FOX Factory 36 SL fork and FOX Float rear shock
- 125 mm of refined rear suspension travel
- Premium SRAM X0 electronic drivetrain
- Integrated power meter
- Lightweight carbon wheels
- Dropper seat post
- Maxxis Dissector front tire
- 180 mm brake rotors front and rear
- Threaded bottom bracket for easier servicing
Play the Trail
The Lux Trail combines the all-round capability of the Neuron CF with the lightweight and efficient characteristics of the Lux Trail platform. The result is an ultralight trail bike designed to deliver a lively and responsive ride across a wide variety of terrain.
Its efficient performance makes climbing feel fast and effortless, while the capable geometry and suspension provide confidence when descending. Whether you're pushing hard uphill or carrying speed into technical sections, the Lux Trail is designed to keep you moving quickly and confidently.
Lean, Light, and Capable
At the heart of the Lux Trail is a sleek carbon-fiber chassis that delivers 125 mm of refined rear suspension travel through a carefully engineered flex-stay rear suspension design.
The ultralight carbon frame weighs approximately 1,850 g while maintaining the strength and capability required for real trail riding. The frame also incorporates a range of practical features designed to enhance performance, functionality, and everyday usability.
Quick and Playful
The Lux Trail is designed to respond immediately when you put power through the pedals. Its crisp and responsive pedal response makes it especially well suited to hard efforts out of the saddle and pumping through trail features.
When the terrain becomes rough at speed, the bike's 140 mm front and 125 mm rear suspension travel is ready to absorb rocks, roots, and other trail obstacles. This combination allows the Lux Trail to remain playful and responsive while providing the suspension capability needed for challenging terrain.
Ride-Fast Geometry
The Lux Trail borrows key geometry characteristics from the highly capable Spectral platform. It features increased reach, additional stack, and a longer wheelbase compared with many bikes in its class.
This geometry provides a stable and confident riding position that remains composed at different speeds and across different types of terrain, while maintaining the responsive character expected from a lightweight trail bike.
Trail-Tough Components
The Lux Trail is equipped with components selected to balance versatility, capability, efficiency, and lively trail performance.
FOX 36 SL forks and FOX Float shocks provide controlled suspension performance, while Maxxis Dissector front tires deliver confident traction. 180 mm brake rotors front and rear provide strong and consistent braking performance without compromising the bike's responsive climbing and handling characteristics.
Durable and Hassle-Free
Despite its ultralight construction, the Lux Trail is designed to withstand real-world trail riding. A specially engineered 3D-forged rocker bridge and redesigned bearings retained with circlips help increase frame stiffness, contributing to improved handling and long-term durability.
Maintenance has also been considered throughout the frame design. All cables and hydraulic lines are fully guided through the frame, making routing cleaner and simplifying service work. The Lux Trail also uses an easily serviced threaded bottom bracket for straightforward maintenance.
Everything You Need, Always Within Reach
The Lux Trail frame provides mounting space for two water bottles, making it practical for longer rides and trail adventures. It also features a large, watertight internal storage compartment that provides convenient space for carrying essential tools, spare parts, and other equipment.
The integrated storage system eliminates the need for additional straps or bulky packs while keeping essential equipment securely inside the frame. Every Lux Trail also comes with a clever multi-tool and dedicated storage sleeve.
Built for Speed and Adventure
With its ultralight carbon frame, progressive geometry, premium FOX Factory suspension, electronic SRAM X0 drivetrain, power meter, carbon wheels, and practical integrated storage, the Canyon Lux Trail CF 9 is designed for riders who want a lightweight trail bike without sacrificing capability.
Fast on climbs, playful through trail features, and confident on rough descents, the Lux Trail CF 9 brings together efficiency, responsiveness, control, and all-round trail performance in a lightweight full-suspension package.
``` ```| Specification | Details |
|---|---|
| Frame | Canyon Lux Trail CF |
| Frame Axle Dimension | 12x148 mm |
| Frame Material | Carbon (CF) |
| Frame Weight | 1850 g |
| Rear Shock | FOX Float Factory |
| Rear Shock Weight | 345 g |
| Suspension Fork | FOX 36 SL Factory |
| Fork Axle Dimension | 15x110 mm |
| Fork Stanchion Diameter | 36 mm |
| Fork Travel | 140 mm |
| Fork Steer Tube Diameter | 1 1/8" - 1,5" |
| Fork Weight | 1875 g |
| Seatpost Clamp | Canyon SC0001 |
| Battery | SRAM Powerpack |
| Rear Derailleur | SRAM X0 Eagle AXS Transmission |
| Rear Derailleur Cage Length | Long |
| Rear Derailleur Weight | 445 g |
| Shift Lever | SRAM AXS Pod Controller Rocker Paddle |
| Shift Lever Weight | 56 g |
| Cassette | SRAM X0 Eagle XS 1295 |
| Number of Sprockets | 12 |
| Cassette Range | 10-52 |
| Crank | SRAM X0 Eagle |
| Powermeter | Yes |
| Number of Chainrings | 1 |
| Bottom Bracket | SRAM DUB BSA |
| Bottom Bracket Standard | BSA 73 |
| Crank Weight | 78 g |
| Chain | SRAM X0 Eagle Transmission |
| Front Disc Brake | SRAM Motive Ultimate |
| Front Brake Pistons | 4 |
| Rear Disc Brake | SRAM Motive Ultimate |
| Rear Brake Pistons | 4 |
| Brake Rotor | SRAM HS2 Rounded |
| Brake Rotor Size | 180 mm |
| Brake Rotor Weight | 212 g |
| Front Wheel | Canyon XC 30 CF |
| Front Wheel Axle Dimension | 15x110 mm |
| Front Wheel Rotor Mount | Center Lock |
| Front Wheel Rim Height | 25 mm |
| Front Wheel Inner Width | 30 mm |
| Front Wheel Rim Material | Carbon |
| Front Wheel Weight | 738 g |
| Rear Wheel | Canyon XC 30 CF |
| Rear Wheel Axle Dimension | 12x148 mm |
| Rear Wheel Rotor Mount | Center Lock |
| Rear Wheel Rim Height | 25 mm |
| Rear Wheel Inner Width | 30 mm |
| Rear Wheel Rim Material | Carbon |
| Rear Wheel Weight | 895 g |
| Front Tyre | Maxxis Dissector |
| Front Tyre Width | 2.4" |
| Front Tyre Weight | 930 g |
| Rear Tyre | Maxxis Rekon |
| Rear Tyre Width | 2.4" |
| Rear Tyre Weight | 890 g |
| Thru Axle | Canyon Quixle |
| Thru Axle Dimension | 12x148 mm |
| Stem | RaceFace Turbine SL Stem |
| Stem Fork Steer Tube Diameter | 1 1/8" |
| Stem Material | Aluminium (AL) |
| Handlebar | RaceFace Era |
| Handlebar Clamping Diameter | 35,0 mm |
| Handlebar Rise | 20 mm |
| Grips | Ergon GXR |
| Saddle | Ergon SRS Pro Carbon |
| Saddle Gender | Unisex |
| Saddle Weight | 172 g |
| Seatpost | FOX Transfer Factory |
| Seatpost Diameter | 31,6 mm |
| Seatpost Material | Aluminium (AL) |
| Seatpost Weight | 653 g |
| Lights | Reflector Set |
| Workshop | Canyon FIX Minitool 6+1 |
| Workshop Description | The Fix Minitool comes in a super slim design, reduced to a minimal but highly efficient 6+1 function to fit in the LOAD System. |
| Workshop Features | Allen keys (2,5 / 3 / 4 / 5 (extension 8) / 6), TX25 (Torx) |
| Workshop Material | S2 Steel |
| Workshop Dimensions | 55mm x 29mm x 6,9mm |
| Workshop Weight | 62g |
| Pedals | None included |
| Manuals and Accessories | Canyon Organza Bag Canyon Assembly Paste Canyon Torque Wrench BAND 003-V01 BIKE CATEGORY 3 Canyon Shock Pump 300 Psi Canyon Smallbox Quick Start Guide |
| Basic Geometry | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Body Height in cm | ≤ 166 | 166 - 175 | 175 - 183 | 183 - 192 | ≥ 192 |
| Seat Height in mm | 589 - 749 | 599 - 759 | 684 - 844 | 714 - 874 | 744 - 904 |
| Seat Tube Length in mm | 390 | 400 | 420 | 450 | 480 |
| Top Tube Length in mm | 556 | 578 | 600 | 623 | 648 |
| Head Tube Length in mm | 93 | 93 | 95 | 108 | 125 |
| Head Tube Angle | 64,8° | 64,8° | 64,8° | 64,8° | 64,8° |
| Seat Tube Angle | 76,4° | 76,2° | 76,1° | 76,1° | 76° |
| Chainstay Length in mm | 435 | 435 | 435 | 440 | 440 |
| Wheel Base in mm | 1.159 | 1.179 | 1.200 | 1.231 | 1.258 |
| Stack in mm | 603 | 603 | 605 | 616 | 632 |
| Reach in mm | 410 | 430 | 450 | 470 | 490 |
| Stand-over Height in mm | 809 | 807 | 808 | 812 | 817 |
| Bottom Bracket Offset in mm | 38 | 38 | 38 | 38 | 38 |
| Component Geometry | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Spacer in mm | 15 | 15 | 15 | 15 | 15 |
| Stem Length in mm | 50 | 50 | 50 | 50 | 50 |
| Handlebar Width in mm | 760 | 760 | 760 | 760 | 760 |
| Crank Length in mm | 165,0 | 170,0 | 170,0 | 175,0 | 175,0 |
| Chainring Size | 32 | 32 | 32 | 32 | 32 |
| Seat Post Diameter in mm | 31,6 | 31,6 | 31,6 | 31,6 | 31,6 |
| Dropper Post Travel in mm | 150 | 150 | 180 | 180 | 180 |
| Seat Post Length in mm | 411 | 411 | 476 | 476 | 476 |
| Maximum Seat Post Insertion Depth in mm | 260 | 260 | 260 | 260 | 260 |
| Minimum Seat Post Insertion Depth in mm | 100 | 100 | 100 | 100 | 100 |
| Wheel Size | 29" | 29" | 29" | 29" | 29" |
| Disc Size in mm | 180 / 180 | 180 / 180 | 180 / 180 | 180 / 180 | 180 / 180 |
| Front Fork Travel in mm | 140 | 140 | 140 | 140 | 140 |
| Fitting Length in mm | 210X55 | 210X55 | 210X55 | 210X55 | 210X55 |
