2027 Canyon Lux Trail CF 7 SRAM Eagle 90 Full Suspension Trail Mountain Bike
Product Description

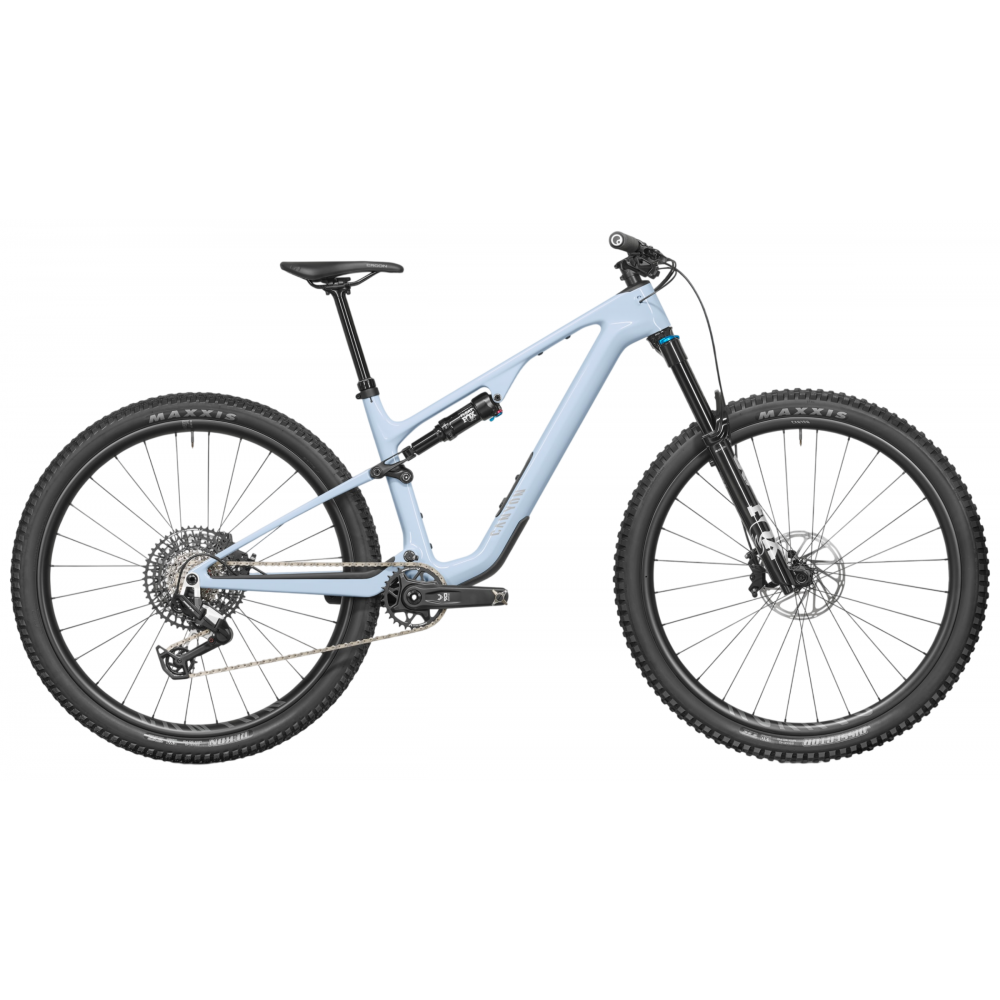

Canyon Lux Trail CF 7 SRAM Eagle 90 Full Suspension Trail Mountain Bike
The Canyon Lux Trail CF 7 combines an ultralight carbon frame, FOX suspension, carbon wheels, and progressive geometry to deliver a fast, capable, and highly versatile trail bike. Bringing together the award-winning Neuron CF and second-generation Lux Trail platforms, it offers efficient climbing, confident descending, and lively handling across a wide range of terrain.
Key Features
- Ultralight carbon frame weighing approximately 1,850 g
- 125 mm of rear suspension travel with flex-stay suspension design
- 140 mm front and 125 mm rear suspension travel
- FOX Performance 36 SL fork and Float rear shock
- SRAM Eagle 90 drivetrain for fast and precise shifting
- Progressive geometry designed for speed, stability, and control
- Carbon wheels for lightweight trail performance
- Maxxis Dissector front tire
- 180 mm brake rotors at the front and rear
- Large watertight internal storage system
- Mounts for two water bottles
- Included multi-tool and storage sleeve
The Perfect Combination
The Lux Trail brings together the all-round capability of the Neuron CF with the lightweight efficiency of the second-generation Lux Trail. The result is an ultralight trail bike that is quick and efficient while remaining highly capable on technical terrain. Its lively character makes climbing easier, while its confident handling allows you to descend with control and speed.
Lightweight Carbon Construction
At the core of the Lux Trail is a sleek carbon-fiber chassis designed to balance low weight with trail-ready capability. The frame delivers 125 mm of refined rear suspension travel through an engineered flex-stay suspension system. With an ultralight carbon frame weighing approximately 1,850 g, the Lux Trail is designed to provide an efficient and responsive ride without compromising its ability to handle demanding trails.
Quick and Playful Performance
The Lux Trail delivers a responsive and lively ride character. Its crisp pedal response makes it well suited to hard efforts out of the saddle and pumping through trail features. When the terrain becomes rough, the combination of 140 mm of front travel and 125 mm of rear travel provides the suspension performance needed to handle rocks, roots, and demanding trail sections.
Progressive Ride-Fast Geometry
The Lux Trail takes inspiration from the geometry of the award-winning Spectral, featuring additional reach, stack, and wheelbase compared with many bikes in its class. This progressive geometry creates a stable and surefooted ride that remains controlled at speed while maintaining the lively handling expected from a lightweight trail bike.
Trail-Ready Components
The Lux Trail CF 7 is equipped for fast and demanding trail riding, with a focus on versatility, efficiency, and responsive performance. The FOX 36 SL fork and Float shock provide capable suspension performance, while the Maxxis Dissector front tire and 180 mm brake rotors front and rear provide confident traction and braking performance without sacrificing climbing efficiency or responsiveness.
Durable and Easy to Maintain
Despite its ultralight construction, the Lux Trail is designed for real trail riding. A 3D-forged rocker bridge and redesigned circlip-retained bearings help increase frame stiffness, contributing to handling and durability. Fully guided cables and hydraulic lines simplify maintenance, while the threaded bottom bracket provides an easily serviced design.
Integrated Storage and Carrying Capacity
The Lux Trail frame provides space for two water bottles along with a large, watertight internal storage compartment. This integrated storage system makes it easy to carry essential equipment without relying on straps or bulky packs. Every bike also includes a practical multi-tool and storage sleeve, keeping essential trail equipment conveniently within reach.
Built to Play the Trail
With its ultralight carbon chassis, progressive geometry, capable FOX suspension, SRAM Eagle 90 drivetrain, carbon wheels, and integrated storage, the Canyon Lux Trail CF 7 is designed to deliver fast, efficient, and confident performance across the trail. It combines lightweight climbing efficiency with capable suspension and stable handling for riders who want to move quickly while remaining ready for demanding terrain.
``` ```| Specification | Details |
|---|---|
| Frame | Canyon Lux Trail CF |
| Frame Axle Dimension | 12x148 mm |
| Frame Material | Carbon (CF) |
| Frame Weight | 1850 g |
| Rear Shock | FOX Float Performance |
| Rear Shock Weight | 339 g |
| Suspension Fork | FOX 36 SL Performance Series |
| Fork Axle Dimension | 15x110 mm |
| Fork Stanchion Diameter | 36 mm |
| Fork Travel | 140 mm |
| Fork Steer Tube Diameter | 1 1/8" - 1,5" |
| Fork Offset | 44 mm |
| Fork Weight | 1968 g |
| Seatpost Clamp | Canyon SC0001 |
| Rear Derailleur | SRAM Eagle 90 Transmission |
| Rear Derailleur Cage Length | long |
| Rear Derailleur Weight | 391 g |
| Shift Lever | SRAM Eagle 90 Transmission |
| Shift Lever Weight | 132 g |
| Cassette | SRAM XS-1275 |
| Number of Sprockets | 12 |
| Cassette Range | 10-52 |
| Crank | SRAM Eagle 90 |
| Number of Chainrings | 1 |
| Bottom Bracket | SRAM DUB BSA |
| Bottom Bracket Standard | BSA 73 |
| Crank Weight | 78 g |
| Chain | SRAM GX Eagle Transmission |
| Front Disc Brake | SRAM Motive Bronze |
| Front Brake Pistons | 4 |
| Rear Disc Brake | SRAM Motive Bronze |
| Rear Brake Pistons | 4 |
| Front Brake Rotor | SRAM Centerline Rounded |
| Front Rotor Size | 180 mm |
| Front Rotor Weight | 148 g |
| Front Wheel | Canyon XC 30 CF |
| Front Wheel Axle Dimension | 15x110 mm |
| Front Wheel Rotor Mount | Center Lock |
| Front Wheel Rim Height | 25 mm |
| Front Wheel Inner Width | 30 mm |
| Front Wheel Rim Material | Carbon |
| Front Wheel Weight | 738 g |
| Rear Wheel | Canyon XC 30 CF |
| Rear Wheel Axle Dimension | 12x148 mm |
| Rear Wheel Rotor Mount | Center Lock |
| Rear Wheel Rim Height | 25 mm |
| Rear Wheel Inner Width | 30 mm |
| Rear Wheel Rim Material | Carbon |
| Rear Wheel Weight | 895 g |
| Front Tyre | Maxxis Dissector |
| Front Tyre Width | 2.4" |
| Front Tyre Weight | 930 g |
| Rear Tyre | Maxxis Rekon |
| Rear Tyre Width | 2.4" |
| Rear Tyre Weight | 890 g |
| Thru Axle | Canyon Quixle |
| Thru Axle Dimension | 12x148 mm |
| Stem | Canyon ST0039 |
| Stem Fork Steer Tube Diameter | 1 1/8" |
| Stem Clamping Diameter | 31,8 mm |
| Stem Material | Aluminium (AL) |
| Handlebar | Canyon HB0073 |
| Handlebar Clamping Diameter | 31,8 mm |
| Handlebar Rise | 15 mm |
| Grips | Ergon GXR |
| Saddle | Ergon SPS20 NEO |
| Saddle Gender | Unisex |
| Saddle Weight | 286 g |
| Seatpost | Canyon SP0081 |
| Seatpost Description | Robust, dependable seatpost compatible with all common saddles. |
| Seatpost Diameter | 31,6 mm |
| Seatpost Material | Aluminium (AL) |
| Seatpost Weight | 668 g |
| Lights | Reflector Set |
| Workshop | Canyon FIX Minitool 6+1 |
| Workshop Description | The Fix Minitool comes in a super slim design, reduced to a minimal but highly efficient 6+1 function to fit in the LOAD System. |
| Workshop Features | Allen keys (2,5 / 3 / 4 / 5 (extension 8) / 6), TX25 (Torx) |
| Workshop Material | S2 Steel |
| Workshop Dimensions | 55mm x 29mm x 6,9mm |
| Workshop Weight | 62g |
| Pedals | None included |
| Manuals and Accessories |
Canyon Organza Bag Canyon Assembly Paste Canyon Torque Wrench BAND 003-V01 BIKE CATEGORY 3 Canyon Shock Pump 300 Psi Canyon Smallbox Quick Start Guide |
| Basic Geometry | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Body Height in cm | ≤ 166 | 166 - 175 | 175 - 183 | 183 - 192 | ≥ 192 |
| Seat Height in mm | 637 - 790 | 647 - 800 | 687 - 860 | 717 - 890 | 747 - 920 |
| Seat Tube Length in mm | 390 | 400 | 420 | 450 | 480 |
| Top Tube Length in mm | 556 | 578 | 600 | 623 | 648 |
| Head Tube Length in mm | 93 | 93 | 95 | 108 | 125 |
| Head Tube Angle | 64,8° | 64,8° | 64,8° | 64,8° | 64,8° |
| Seat Tube Angle | 76,4° | 76,2° | 76,1° | 76,1° | 76° |
| Chainstay Length in mm | 435 | 435 | 435 | 440 | 440 |
| Wheel Base in mm | 1.159 | 1.179 | 1.200 | 1.231 | 1.258 |
| Stack in mm | 603 | 603 | 605 | 616 | 632 |
| Reach in mm | 410 | 430 | 450 | 470 | 490 |
| Stand-over Height in mm | 809 | 807 | 808 | 812 | 817 |
| Bottom Bracket Offset in mm | 38 | 38 | 38 | 38 | 38 |
| Component Geometry | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Spacer in mm | 15 | 15 | 15 | 15 | 15 |
| Stem Length in mm | 45 | 45 | 45 | 45 | 45 |
| Handlebar Width in mm | 760 | 760 | 760 | 760 | 760 |
| Crank Length in mm | 165,0 | 170,0 | 170,0 | 175,0 | 175,0 |
| Chainring Size | 32 | 32 | 32 | 32 | 32 |
| Seat Post Diameter in mm | 31,6 | 31,6 | 31,6 | 31,6 | 31,6 |
| Dropper Post Travel in mm | 150 | 150 | 170 | 170 | 170 |
| Seat Post Length in mm | 458 | 458 | 498 | 498 | 498 |
| Maximum Seat Post Insertion Depth in mm | 259 | 259 | 279 | 279 | 279 |
| Minimum Seat Post Insertion Depth in mm | 106 | 106 | 106 | 106 | 106 |
| Wheel Size | 29" | 29" | 29" | 29" | 29" |
| Disc Size in mm | 180 / 180 | 180 / 180 | 180 / 180 | 180 / 180 | 180 / 180 |
| Front Fork Travel in mm | 140 | 140 | 140 | 140 | 140 |
| Fitting Length in mm | 210X55 | 210X55 | 210X55 | 210X55 | 210X55 |
