2025 Marin Rift Zone EL1 Mountain Bike
Product Description

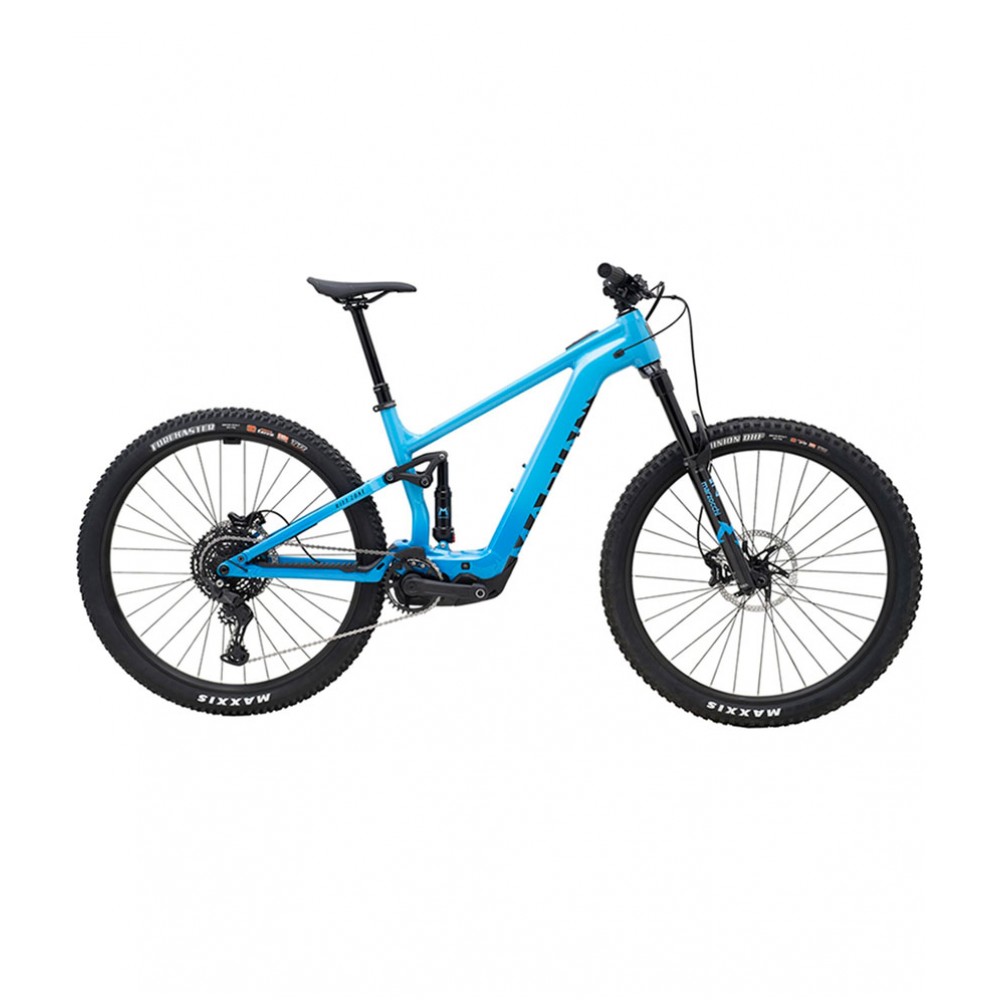

2025 Marin Rift Zone EL1 Lightweight Electric Mountain Bike
The 2025 Marin Rift Zone EL1 ("Electric Light") is designed for trail riders who want the agility of a traditional mountain bike with the added boost of a modern motor. By repurposing the legendary Rift Zone platform into a lighter electric package, the EL1 offers a versatile and nimble ride that bridges the gap between acoustic bikes and full-powered eMTBs.
Lightweight Electric Trail Performance
At the core of the Rift Zone EL1 is the Bosch Performance Line SX motor. This mid-drive system provides up to 600W of peak power and 55Nm of torque, offering a natural pedaling feel that rewards high-cadence riding. Paired with an integrated 400Wh battery, it delivers plenty of range for fast-paced trail sessions without the heavy weight of traditional e-bikes.
Agile Handling & Premium Suspension
- Precision Suspension: Features a Marzocchi Bomber Z1 150mm fork and a Bomber Air Inline rear shock, custom-tuned for the 140mm MultiTrac suspension platform to provide exceptional tracking and comfort.
- Series 4 Alloy Lightweight Frame: Built from premium aluminum, the frame features an integrated battery port and a modern 34.9mm seat tube for increased stiffness and compatibility with long-travel droppers.
- Shimano CUES Drivetrain: Equipped with the durable Shimano CUES 10-speed system, built specifically to handle the sustained torque of electric motors.
- Powerful Braking: TRP Slate EVO 4-piston brakes paired with massive 203mm rotors ensure you have the stopping power needed for aggressive trail descents.
The Rift Zone EL1 comes trail-ready with a Maxxis Minion DHF and Forecaster tire combination for a perfect balance of grip and rolling speed. With an estimated range of up to 55 miles and a quick 6-hour charging time, this "Lightweight Electric" machine is ready to redefine your local trail laps.
Technical Specifications
| E-Bike System & Electronics | |
|---|---|
| Motor | Bosch Performance Line SX, 600W Peak, 55Nm Torque, 20 MPH Top Assist |
| Battery | Bosch 400Wh Internal (Optional PowerMore 250Wh External Compatible) |
| Display / Remote | Bosch BRC3100 Systems Controller / BRC3300 Bluetooth Remote |
| Estimated Range | 15–55 miles (25–90 km) depending on conditions |
| Charging Time | Approximately 6 hours |
| Frame & Suspension | |
| Frame | Series 4 Alloy Lightweight E, 140mm MultiTrac Suspension, Integrated Battery, 148x12mm Thru-Axle |
| Front Suspension | Marzocchi Bomber Z1, 150mm Travel, 29", Kabolt Axle, 44mm Offset |
| Rear Suspension | Marzocchi Bomber Air Inline, Custom Tune, 210x55mm |
| Drivetrain | |
| Rear Derailleur | Shimano CUES RD-U6000 GS, 10-Speed |
| Shift Lever | Shimano CUES SL-U6000-10R, 10-Speed |
| Crankset | e*thirteen e*spec Plus, 160mm Length, 34T |
| Cassette | Shimano CS-LG300-10, 11-48T |
| Chain | Shimano LG500 |
| Brakes | |
| Brakes | TRP Slate EVO, 4-Piston Hydraulic Disc |
| Rotors | 203mm Front / 203mm Rear |
| Wheels & Tires | |
| Rims | Marin Aluminum Double Wall, 32mm Inner Width, Tubeless Compatible |
| Hubs | Shimano TC500, Centerlock, Boost 110x15mm / 148x12mm |
| Front Tire | Maxxis Minion DHF, 29x2.4", MAXXGRIP, EXO+, Tubeless Ready |
| Rear Tire | Maxxis Forecaster, 29x2.4", MAXX TERRA, EXO+, Tubeless Ready |
| Cockpit & Components | |
| Handlebar | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise |
| Stem | Marin 3D Forged Alloy, 35mm |
| Seatpost | TranzX YSI34 QL Remote (S:150mm, M/L:170mm, XL:200mm), 34.9mm |
| Saddle | Marin Speed Concept |
| Headset | FSA Custom, Adjustable Head Tube Angle Design |
