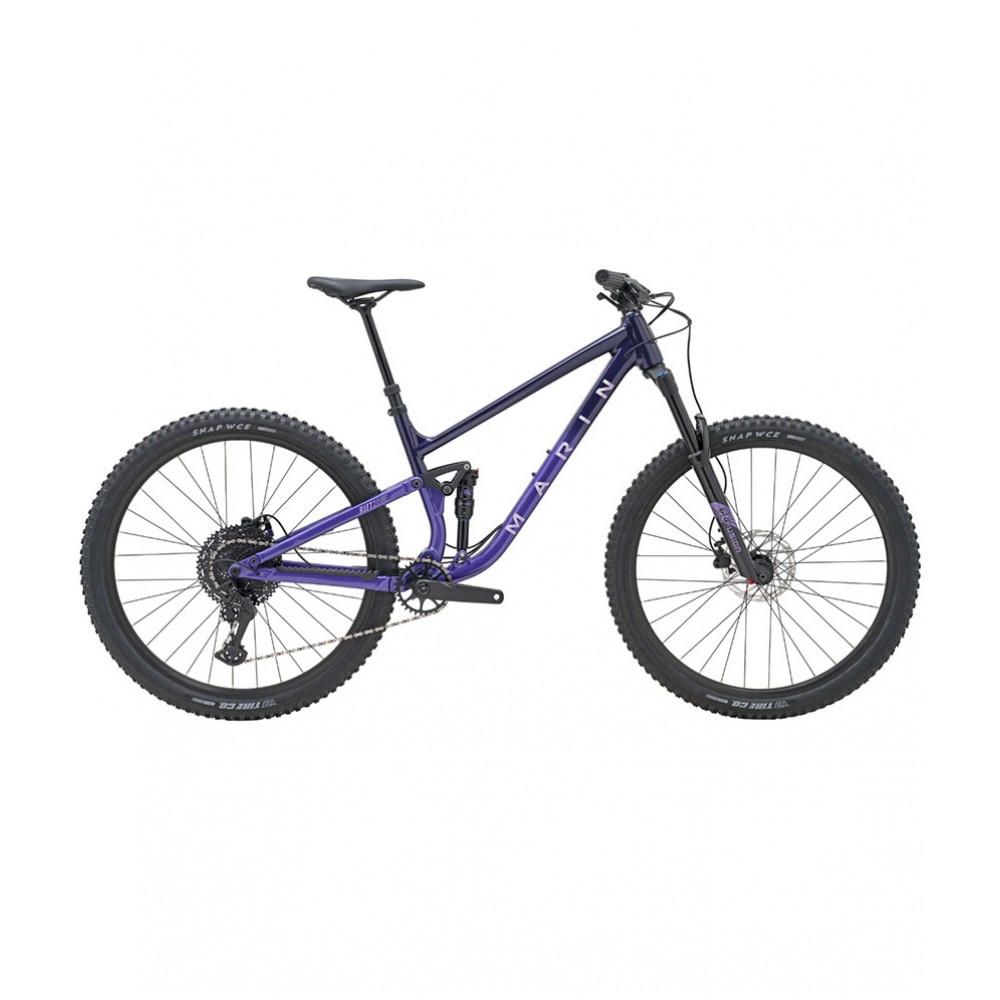

2025 Marin Rift Zone 1 Mountain Bike
Feel the Rifty Love! The 2025 Marin Rift Zone 1 is the ultimate do-it-all trail bike. Designed for all-day epics, local trail laps, or big mountain adventures, this bike is Made For Fun.
Performance Highlights
- Series 3 6061 aluminum MultiTrac suspension frame with 130mm travel
- X-Fusion Slide 29” or Sweep 27.5” fork, 140mm travel
- X-Fusion O2 Pro R rear shock, 210x55mm, custom tune
- Shimano 11-speed drivetrain for smooth shifting
- Tektro HD-M280 hydraulic brakes with 180mm rotors front and rear
- Tubeless-ready wheels with Vee Tire Co. Snap WCE 2.35” tires
Technical Specifications
| Frame | Series 3 6061 Aluminum, 130mm travel, MultiTrac suspension platform, 141 Boost spacing (upgradable to 148x12), 73mm threaded BB with ISCG05 tabs |
|---|---|
| Fork | X-Fusion Slide (29") or Sweep (27.5") Boost RC, 140mm travel, compression & rebound adjustment, 44mm offset |
| Rear Shock | X-Fusion O2 Pro R, custom tune, 210x55mm, M8x25mm hardware top & bottom |
| Rims | Marin aluminum double wall, 29mm inner width, pinned joint, disc-specific, tubeless compatible |
|---|---|
| Front Hub | Shimano HF-MT400B, 110x15mm, centerlock |
| Rear Hub | Shimano HB-MT200B, 141 QR, centerlock, standard freehub body |
| Spokes | 14g black stainless steel |
| Tires | Vee Tire Co. Snap WCE, 2.35", Top 40 compound, GXE Core, 90 TPI, tubeless compatible |
| Rear Derailleur | Shimano RD-U6000, 11-speed GS |
|---|---|
| Shift Lever | Shimano SL-U6000-11R, 11-speed |
| Crankset | Marin forged alloy, integrated steel 32T narrow-wide chainring, boost spacing |
| Bottom Bracket | External sealed cartridge bearing |
| Chain | Shimano LG-500, 11-speed |
| Cassette | Shimano CS-LG400-11, 11-speed, 11-50T |
| Front Brake | Tektro HD-M280 hydraulic, 180mm rotor |
|---|---|
| Rear Brake | Tektro HD-M280 hydraulic, 180mm rotor |
| Brake Levers | Tektro HD-M280 |
| Handlebar | Marin Mini-Riser, 6061 double-butted aluminum, 780mm width, 28mm rise, 5° up, 9° back |
|---|---|
| Stem | Marin 3D forged alloy, 35mm |
| Grips | Marin Mtn, closed end |
| Headset | FSA No. 57E, semi-sealed cartridge bearings, 1 1/8" x 1 1/2” |
| Seatpost | X-Fusion Manic 1x composite remote, 150mm travel (XS-S), 170mm travel (M-XL), 30.9mm diameter |
| Saddle | Marin Speed Concept |
| Extras | Closed 9-12 thru-axle bolt-on system |
Specifications are subject to change without notice.
